Production Kit:
- Alexa 35 Xtreme Camera Body
- LPL and PL Mount Adapter
- Alexa 35 Balance Utility Dovetail BUD-1
- Alexa 35 Power Distribution Module PDM-1
- Viewfinder MVF-2
- Alexa 35 Viewfinder Mounting Bracket VMB-5
- VF Cable 1.5ft
- Alexa 35 Compact Bridge Plate CBP-5 (19mm) CBP-6 (15mm)
- Alexa 35 Low Mode Support LMS-4
- Alexa 35 Rod Mounting Brackets RMB-7 and RMB-3
- Alexa 35 Square Accessory Sleeve SAS-1
- Alexa 35 Articulated Mounting Plate AMP-1
- Alexa 35 Audio Extension Module AEM-1
- Alexa 35 Balance Harness Adapter BHA-1
- Alexa 35 Bottom Plate 300mm / 12"
- Alexa 35 Bridge Plate Adapter BPA-6
- Alexa 35 Camera Side Bracket CSB- 1L
- Alexa 35 Camera Side Bracket CSB- 1R
- Alexa 35 Camera Side Bracket CSB 1R Extension
- Alexa 35 Centre Camera Handle CCH-5
- Alexa 35 Top Extension Bracket TEB-1
- B-Mount Battery Set
- Codex Compact Drive Dock Thunder Bolt 3
- Codex Compact Drives 2TB
- SANDISK ULTRA Dual Drive Luxe USB Type-C 32GB
- Additional Lightweight Expansion Set Available
Technical Specifications:
| Sensor Type: | Super 35 format ARRI ALEV 4 CMOS sensor with Bayer pattern color filter array |
| Sensor Maximum Number of Photosites and Size: | 4608 x 3164 |
| Sensor Frame Rates: | 0.75 - 660 fps |
| Weight: | 2.9 kg / 6.4 lbs (camera body with three antennas and LPL Mount (LBUS)) |
| Photosite Pitch: | 6.075 μm |
| Sensor Active Image Area: | 4608 x 3164 27.99 x 19.22 mm / 1.102 x 0.757" Ø 33.96 mm / 1.337 |
Recording Codecs | MXF/ARRIRAW MXF/ARRICORE MXF/Apple ProRes 4444 XQ MXF/Apple ProRes 4444 MXF/Apple ProRes 422 HQ |
| Dynamic Range: | 17 stops |
| Exposure Index: | Adjustable from EI 160 - 6400 in 1/3 stops |
| Shutter: | Electronic shutter, 1.0°- 356° or 1s - 1/8000s |

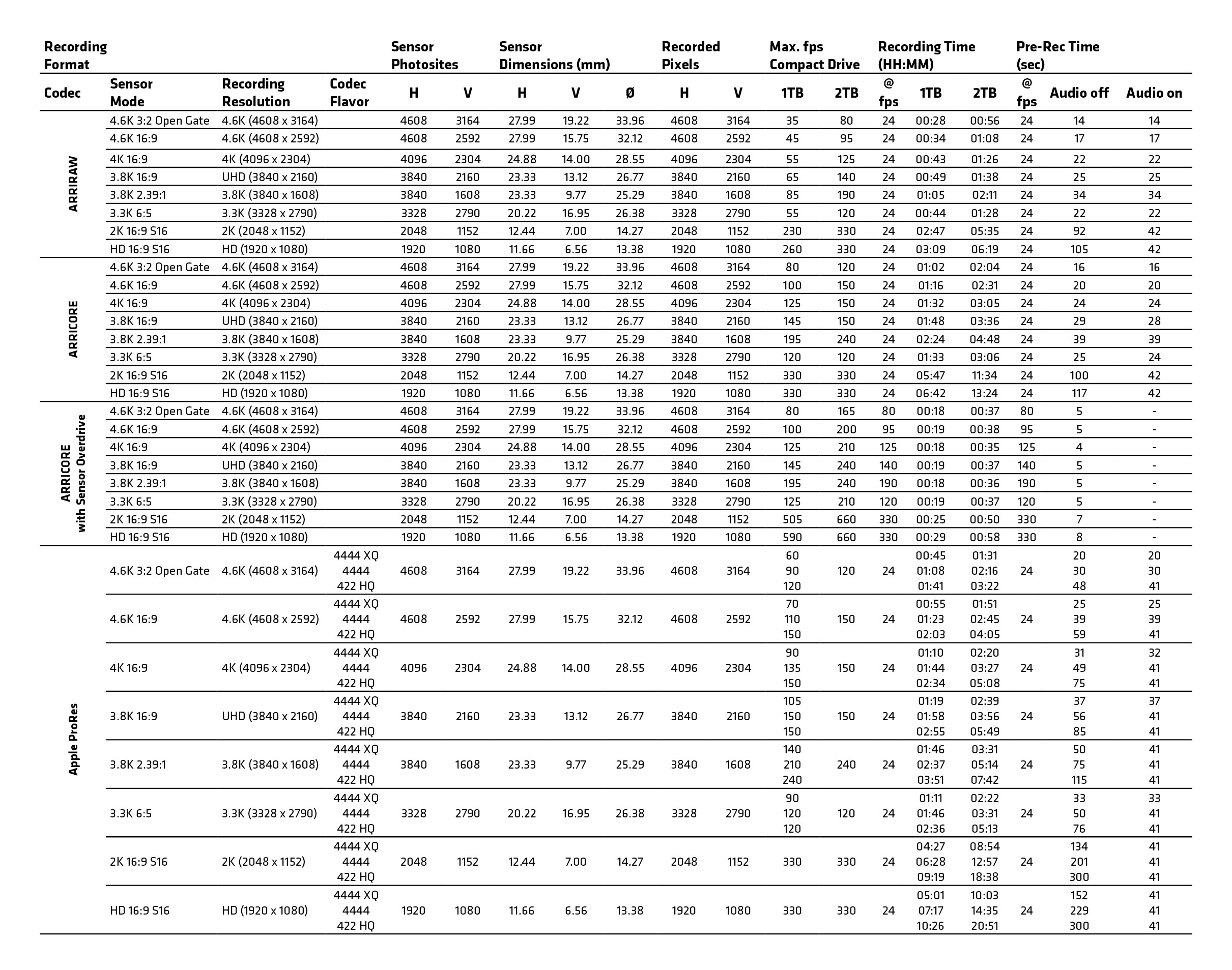

| Recording Formats: | ALEXA 35 Xtreme Recording Formats -Link |
| Recording Media: | Codex Compact Drive 1TB (CA08-1024), Codex Compact Drive 2TB (CB16-2048) |
| Recording Modes: | Standard real-time recording, Pre-recording |
| Viewfinder Type: | Multi Viewfinder MVF-2 with OLED viewfinder display (1920 x 1080) and 4" LCD flip-out monitor (800 x 480) |
| Viewfinder Technology: | OLED viewfinder display LCD fold out monitor |
| Viewfinder Resolution (pixel): | 1920 x 1080 |
| Viewfinder Diopter: | Adjustable from -5 to +5 diopters |
| Color Output: | Rec 709, Rec 2020, Rec 2100 PQ, Rec 2100 HLG, LogC4 |
| Look Control: | ARRI Textures Custom color look (through ARRI Look File ALF4 or ARRI Look Library) |
| White Balance: | Manual and auto white balance, adjustable from 2000K to 11000K. Color correction adjustable from -16 to +16 CC(1 CC corresponds to 035 Kodak CC values or 1/8 Rosco values) |
| Filters: | Four position built-in motorized ND filter: Clear, 0.6, 1.2, 1.8. Fixed optical low pass, UV, IR filter |
| Image Outputs: | 2x VF custom CoaXPress connectors for MVF-2 viewfinder 2x 12G SDI (BNC) 422 1.5G HD, 422 3G HD, 444 3G HD, 422 6G UHD, 422 12G UHD, 444 12G UHD |
| Lens Squeeze Factors: | 1.00, 1.25, 1.30, 1.33, 1.50, 1.65, 1.80, 1.85, 2.00 |
| Exposure and Focus Tools: | False Color, Zoom, Aperture and Color Peaking |
| Audio Input: | 4 channel linear PCM (24 bit, 48 kHz)1x AUDIO (LEMO 6pin) for balanced stereo line in (line input max. level +24 dBu correlating to 0 dBFS) Two built-in microphones for scratch audio With Audio Extension Module AEM-1: additional 3x TA3 connectors (MIC/Line, +48 V, AES) |
| Audio Output: | 1x AUDIO (LEMO 6pin) for balanced stereo line in (line input max. level +24 dBu correlating to 0 dBFS) |
| Audio Recording: | 4 channel linear PCM (24 bit, 48 kHz) |
| Remote Control Options: | Camera Companion App ARRI Electronic Control System (ECS) Web-based remote control from phones, tablets and laptops via WiFi & Ethernet Camera Access Protocol (CAP) via WiFi & Ethernet GPIO interface for integration with custom control interfaces |
| Interfaces: | 1x LBUS (LEMO 4pin) for lens motors, daisy chainable 1x SERIAL (LEMO 4pin) for distance measuring accessories 1x TC (LEMO 5pin) for timecode In/Out 1x ETH (LEMO 10pin) for remote control and service 1x SYNC IN (BNC) for Genlock synchronization 1x RET IN (BNC, switchable on SDI 2) 1x USB-C for user setups, look files etc 1x Rear Interface (18-pin Pogo) 1x Top Interface (5-pin Pogo) |
| Wireless Interfaces: | Built-in WiFi module (IEEE 802.11b/g) Built-in White Radio for ARRI ECS lens and camera remote control |
| Lens Mounts: | ARRI LPL Mount (LBUS) ARRI PL-to-LPL Adapter ARRI PL Mount (LBUS) ARRI PL Mount (Hirose) ARRI EF Mount (LBUS) Leitz M Mount for ARRI |
| Flange Focal Depth: | LPL Mount: 44 mm , PL mount: 52 mm |
| Power Input: | 1x PWR (LEMO 8-pin) 1x BAT (camera rear interface / battery adapter) 20.5 V - 33.6 V DC |
| Power Consumption: | ~ 81 W (Camera body and MVF-2 typical, max. 310 W with all accessories) |
| Power Outputs: | 1x RS (Fischer 3pin) for 24 V accessory power out, start/stop and shutter pulse 1x 12 V (LEMO 2pin) for 12 V accessory power out 1x LBUS (LEMO 4pin) for lens motors & 24 V power out, daisy- chainable 1x AUDIO (LEMO 6pin) for balanced stereo line in and 12 V accessory power out 1x ETH (LEMO 10pin) for remote control, service and 24 V accessory power out With Power Distribution Module PDM-1: additionally 4x 24 V, 2x 12 V and 1x D-Tap |
| Dimensions: | 147 x 152.5 x 203 mm / 5.8 x 6.0 x 8.0" (camera body with LPL lens mount) |
| Operating Temperature: | General: -20° C to +45° C / -4° F to +113° F When using more than 120 fps (all sensor modes) or 90 fps or more in 4.6K 3:2 OG or 3.3K 6:5: -20° C to +40° C / -4° F to +104° F |
| Storage Temperature: | -30° C to +70° C / -22° F to +158° F |
| Sound Level: | < 20 dB(A) at 30fps, recording 4K 16:9 - UHD, Apple ProRes 4444 XQ, ≤ +30° C ambient temperature |
| Software Licenses: | Highspeed, ARRIRAW, OpenGate / Anamorphic, Look, Pre-recording, Premium, |
